Creating a workflow for genome-environment-association analyses with RADseq data

Lara Breitkreutz

Project Goal

• create a workflow for conducting genotype-environment association (GEA) analyses using RAD-seq data

• in the future, I will use this workflow for identifying candidate loci associated with components of thermal variation

Methods: alignment

• Aligned sequences to a reference Zostera marina genome using the BWA MEM function in the Burrow-Wheeler Aligner software (Li and Durbin, 2009).

Methods: alignment

## Aligning

# a for loop that aligns each .fq file according to name of sample and outputs a .sam file
for i in ${ind_ID};
do
  bwa mem -t 20 -T 30 $REF $INPUT/${i}.fq > $OUTPUT1/${i}.sam 2>> $REPORT
done

conda deactivate #deactivate conda env

## Sorting
conda activate samtools_env

# a for loop that sorts each .sam file (using samtools) and creates a .bam file
for i in ${ind_ID};
do
  samtools view -b -q 30 $OUTPUT1/${i}.sam > $OUTPUT1/${i}.bam
  samtools sort $OUTPUT1/${i}.bam > $OUTPUT2/${i}.bam
  samtools index $OUTPUT2/${i}.bam

Methods: genotyping

• Genotyping polymorphic loci using the ref_map function in STACKS.
• Important input file for this script is the text file that stores the samples and their corresponding collection site and region

Methods: genotyping

sample	collection site	region
B001	Belfair	HoodCanal
B002	Belfair	HoodCanal
…	…	…
W049	Willapa Bay	Coast
W050	Willapa Bay	Coast

Methods: genotyping

# Run the reference-based Stacks pipeline
ref_map.pl \
--samples ${ALL_DEDUP} \
--popmap ${POPMAP} \
-o ${REFMAP_DIR} \
-T 20 \
-X "populations: --vcf" \
-X "populations: --ordered-export"
#&>> $REPORT/refmap_RAD_${DATASET}.txt

Methods: environmental data simulation

• Awaiting arrival of environmental data I have requested (and request has been granted)
• In the mean time, simulating some…

Methods: environmental data simulation

# function for simulating temperatures
simulate_temps <- function() {
  base_temps <- c(
    6.5, 7.1, 8.3, 10.2, 12.8, 15.5,  # Monthly averages for nearshore areas
    17.5, 18.3, 16.1, 12.5, 9.1, 7.2   # Based on Salish Sea observations
  )

  tibble(date = seq.Date(as.Date("2025-01-01"), by = "day", length.out = 365)) %>%
    mutate(
      month = month(date),
      temp = base_temps[month] + rnorm(365, 0, 1.0)  # Simplified noise
    )
}

Methods: environmental data simulation

# calculate seasonal temp metrics
seasonal_data <- sites %>%
  mutate(
    temp_data = map(1:n(), ~simulate_temps()),
    metrics = map(temp_data, ~{
      .x %>%
        mutate(season = case_when(
          month(date) %in% 3:5 ~ "Spring",
          month(date) %in% 6:8 ~ "Summer",
          month(date) %in% 9:11 ~ "Fall",
          TRUE ~ "Winter"
        )) %>%
        group_by(season) %>%
        summarise(
          avg_temp = mean(temp),
          max_temp = max(temp),
          min_temp = min(temp),
          temp_range = max_temp - min_temp,
          warm_anomaly_days = sum(temp > quantile(temp, 0.9)),
          cold_anomaly_days = sum(temp < quantile(temp, 0.1)),
          cumulative_gdd = sum(pmax(temp - 5, 0))
        )
    })
  ) %>%
  unnest(metrics) %>%
  select(-temp_data)

Preliminary results: alignment

• .sam (sequence alignment map) files stores information for sequences mapped to the reference genome.
• contain a header with reference sequence name and length:

Preliminary results: alignment

Preliminary results: alignment

• .bam (binary alignment map) files are the compressed binary version of .sam files stores information for sequences mapped to the reference genome.
• their reduced file size improves runtime for gstacks.

Preliminary results: genotyping

• gstacks is currently running! …

Preliminary results: genotyping

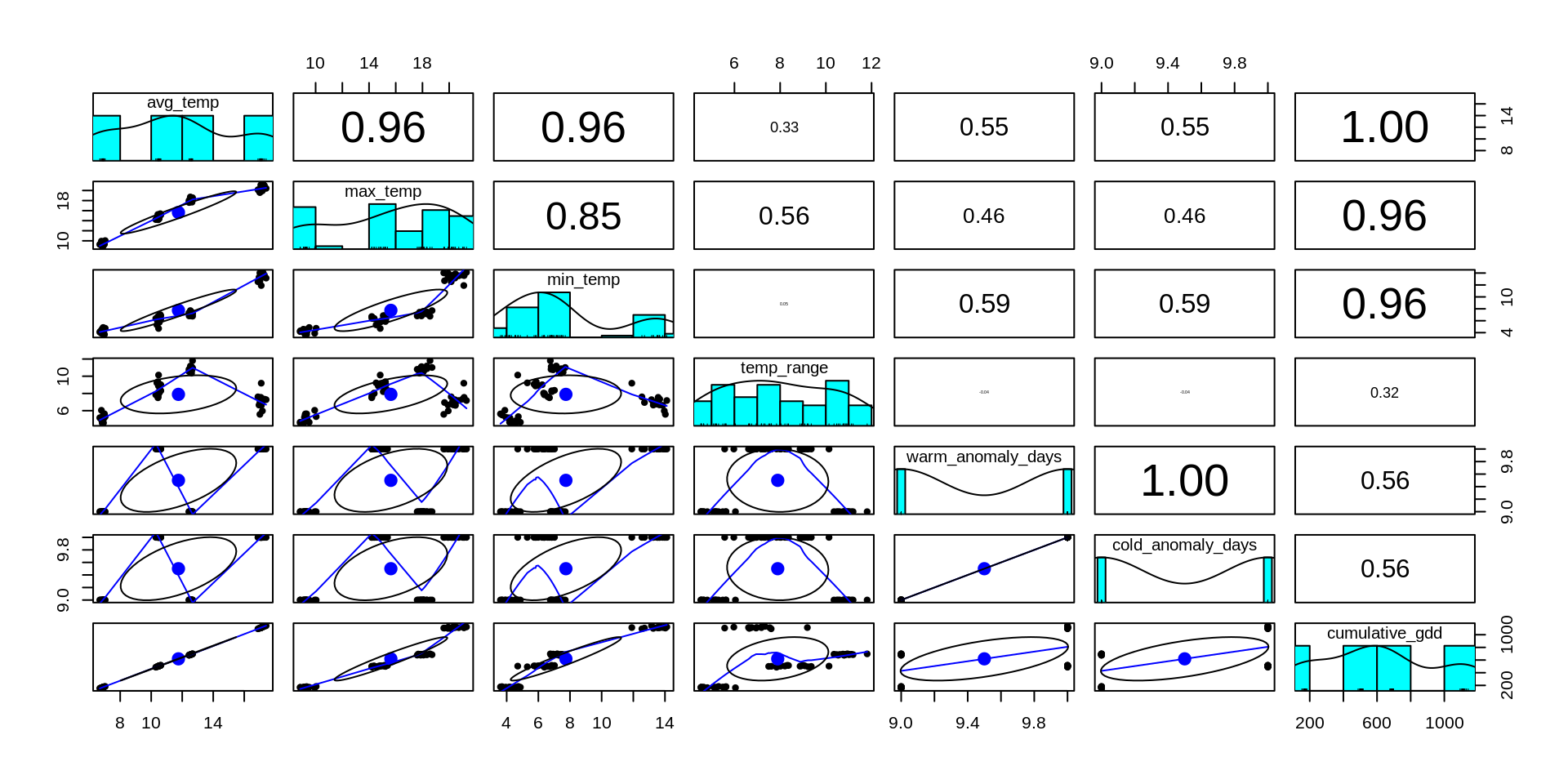

Preliminary results: simulating environmental data

Next four weeks

• Filtering

  • gstacks will produce .vcf files (variant calls and genotypes)
  • remove low-quality variants and genotypes

• Calculate population allele frequencies

…continued

• Process and summarize environmental data at the population level (awaiting access, but I have simulated data if need be)

• Build GEA analyses! Likely 2 separate analyses for cross-validation

• Build workflow for identifing candidate loci
