--- title: "27- Methylation landscape (Goal 1)" author: Steven Roberts date: "07 July, 2026" output: github_document: toc: true toc_depth: 3 number_sections: true html_preview: true html_document: theme: readable highlight: zenburn toc: true toc_float: true number_sections: true code_folding: show code_download: true --- ------------------------------------------------------------------------ # Overview — Goal 1 Genome-wide, treatment-independent characterization of the *M. trossulus* CpG methylome plus the sample-level QC baseline, using the **24-sample** object (`myobj_24`, incl. 93M) from `26-methylkit-object.Rmd`. Implements plan sections 1.1, 1.2 and 1.5 (feature distribution is `28`, CpG O/E is `29`). Output dir: `../output/27-methylation-landscape/` ``` bash mkdir -p ../output/27-methylation-landscape ``` ``` r myobj_24 <- readRDS("../output/26-methylkit-object/myobj_24.rds") meta <- read.csv("../output/26-methylkit-object/sample_metadata.csv") ``` # 1.1 Per-sample global CpG methylation summary Global **weighted** % CpG methylation = Σ methylated counts / Σ total counts. ``` r per_sample <- do.call(rbind, lapply(seq_along(myobj_24), function(i) { d <- getData(myobj_24[[i]]) tot <- d$coverage meth <- d$numCs data.frame( sample = myobj_24[[i]]@sample.id, n_CpG_covered = nrow(d), mean_coverage = mean(tot), median_coverage = median(tot), global_pct_meth = 100 * sum(meth) / sum(tot) ) })) |> left_join(meta, by = "sample") write.csv(per_sample, "../output/27-methylation-landscape/per_sample_global_methylation.csv", row.names = FALSE) per_sample ``` ``` ## sample n_CpG_covered mean_coverage median_coverage global_pct_meth site pah ## 1 105M 18406826 8.811487 7 10.69423 HC 0 ## 2 106M 18236271 8.108786 7 11.96869 HC 0 ## 3 107M 18411128 8.774477 7 12.14405 HC 0 ## 4 109M 18449061 8.892177 8 11.71570 HC 0 ## 5 239M 18664539 9.705296 8 12.22455 AP 0 ## 6 240M 18461218 8.988001 7 12.64607 AP 0 ## 7 241M 18260327 8.584591 7 11.11752 AP 0 ## 8 242M 18125656 9.624313 7 12.30548 AP 0 ## 9 269M 18479390 9.097642 8 11.28963 BS 0 ## 10 270M 18567451 9.372437 8 10.85165 BS 0 ## 11 271M 18409816 8.598718 7 11.58444 BS 0 ## 12 272M 18384196 8.506025 7 11.63563 BS 0 ## 13 69M 18556653 9.458359 7 12.12169 EB 1 ## 14 70M 18639486 9.604388 7 12.15043 EB 1 ## 15 71M 18499400 9.331989 7 11.26490 EB 1 ## 16 72M 18516075 9.058939 7 11.15854 EB 1 ## 17 78M 18600722 9.490222 8 11.17434 SA 1 ## 18 79M 18334331 8.634100 7 11.55505 SA 1 ## 19 80M 18462899 9.016696 8 11.85947 SA 1 ## 20 81M 18438174 8.873532 7 10.66505 SA 1 ## 21 92M 18316354 8.639745 7 10.82577 SC 1 ## 22 93M 17161393 7.984483 7 11.65293 SC 1 ## 23 94M 18570694 9.238314 8 11.47572 SC 1 ## 24 95M 18252648 8.191083 7 11.99677 SC 1 ``` ``` r # Manuscript reports global mean ~12% (range 10.3-13%); confirm here. summary(per_sample$global_pct_meth) ``` ``` ## Min. 1st Qu. Median Mean 3rd Qu. Max. ## 10.67 11.17 11.61 11.59 12.03 12.65 ``` # Per-sample methylation & coverage histograms ``` r pdf("../output/27-methylation-landscape/methylation_stats_histograms.pdf", width = 6, height = 4) for (i in seq_along(myobj_24)) { getMethylationStats(myobj_24[[i]], plot = TRUE, both.strands = FALSE) } dev.off() ``` ``` ## png ## 2 ``` ``` r pdf("../output/27-methylation-landscape/coverage_stats_histograms.pdf", width = 6, height = 4) for (i in seq_along(myobj_24)) { getCoverageStats(myobj_24[[i]], plot = TRUE, both.strands = FALSE) } dev.off() ``` ``` ## png ## 2 ``` # 1.2 Methylation-level distribution & CpG classification Bivalve methylomes are bimodal/mosaic. Classify sufficiently covered CpGs (>=10x) into three standard invertebrate bins. ``` r classify <- function(obj, mincov = 10) { do.call(rbind, lapply(seq_along(obj), function(i) { d <- getData(obj[[i]]) d <- d[d$coverage >= mincov, ] pm <- 100 * d$numCs / d$coverage cls <- cut(pm, breaks = c(-Inf, 10, 50, Inf), labels = c("unmethylated", "intermediate", "methylated")) as.data.frame(table(cls)) |> mutate(sample = obj[[i]]@sample.id, prop = Freq / sum(Freq)) })) } cpg_classes <- classify(myobj_24, mincov = 10) write.csv(cpg_classes, "../output/27-methylation-landscape/cpg_class_proportions.csv", row.names = FALSE) # Genome-wide pooled proportions cpg_classes |> group_by(cls) |> summarise(prop = sum(Freq) / sum(cpg_classes$Freq)) ``` ``` ## # A tibble: 3 × 2 ## cls prop ## ## 1 unmethylated 0.803 ## 2 intermediate 0.101 ## 3 methylated 0.0961 ``` ``` r # Pooled per-CpG % methylation distribution (>=10x), showing bimodality pm_all <- unlist(lapply(seq_along(myobj_24), function(i) { d <- getData(myobj_24[[i]]); d <- d[d$coverage >= 10, ] 100 * d$numCs / d$coverage })) p <- ggplot(data.frame(pct = pm_all), aes(pct)) + geom_histogram(bins = 50, fill = "grey30") + labs(x = "% CpG methylation (>=10x, pooled)", y = "CpG count", title = "Genome-wide methylation bimodality") + theme_minimal() ggsave("../output/27-methylation-landscape/bimodality_pooled.png", p, width = 6, height = 4) ``` # 1.5 Sample-level QC: correlation, clustering, PCA Use the united matrix at 10x (from `26-methylkit-object.Rmd`, 23-sample) plus a 24-sample unite to position **93M**. ``` r # Light filter on the 24-sample set for global structure (10x, cap 98%) filt_24 <- filterByCoverage(myobj_24, lo.count = 10, lo.perc = NULL, hi.count = NULL, hi.perc = 98) meth_24 <- unite(filt_24, min.per.group = 4L, destrand = FALSE) saveRDS(meth_24, "../output/27-methylation-landscape/meth_24_10x.rds") nrow(meth_24) ``` ``` ## [1] 7890104 ``` ``` r png("../output/27-methylation-landscape/sample_correlation.png", width = 1200, height = 1200) getCorrelation(meth_24, plot = TRUE) ``` ``` ## 105M 106M 107M 109M 239M 240M 241M ## 105M 1.0000000 0.8748886 0.8743572 0.8745712 0.8787891 0.8826842 0.8823999 ## 106M 0.8748886 1.0000000 0.8917654 0.8944125 0.8911488 0.8924343 0.8756676 ## 107M 0.8743572 0.8917654 1.0000000 0.8945619 0.8907221 0.8866967 0.8802328 ## 109M 0.8745712 0.8944125 0.8945619 1.0000000 0.8930759 0.8906837 0.8785594 ## 239M 0.8787891 0.8911488 0.8907221 0.8930759 1.0000000 0.8906842 0.8834642 ## 240M 0.8826842 0.8924343 0.8866967 0.8906837 0.8906842 1.0000000 0.8807746 ## 241M 0.8823999 0.8756676 0.8802328 0.8785594 0.8834642 0.8807746 1.0000000 ## 242M 0.8877499 0.8806699 0.8776032 0.8803499 0.8846428 0.8885235 0.8870224 ## 269M 0.8839043 0.8819537 0.8850987 0.8862588 0.8867384 0.8906731 0.8834862 ## 270M 0.8841114 0.8759107 0.8752449 0.8742585 0.8831159 0.8832803 0.8829289 ## 271M 0.8721717 0.8922115 0.8910464 0.8940856 0.8868225 0.8856225 0.8756713 ## 272M 0.8742497 0.8923593 0.8921518 0.8934782 0.8896228 0.8886497 0.8797040 ## 69M 0.8834253 0.8828585 0.8795008 0.8833961 0.8809634 0.8875573 0.8841298 ## 70M 0.8866810 0.8825708 0.8831899 0.8818234 0.8865950 0.8859345 0.8919455 ## 71M 0.8879241 0.8790609 0.8795339 0.8795501 0.8831597 0.8865321 0.8838750 ## 72M 0.8888565 0.8755278 0.8757371 0.8795507 0.8824441 0.8840521 0.8863091 ## 78M 0.8855700 0.8820850 0.8779986 0.8836088 0.8845081 0.8879362 0.8887524 ## 79M 0.8731463 0.8921435 0.8916061 0.8961749 0.8884921 0.8901632 0.8758296 ## 80M 0.8750002 0.8944950 0.8911367 0.8947769 0.8939630 0.8916699 0.8781565 ## 81M 0.8816313 0.8728327 0.8769054 0.8760313 0.8769676 0.8810118 0.8801093 ## 92M 0.8826261 0.8766862 0.8780428 0.8793387 0.8825837 0.8816992 0.8860945 ## 93M 0.8764875 0.8908421 0.8890570 0.8925880 0.8884510 0.8904487 0.8781733 ## 94M 0.8829896 0.8790891 0.8784781 0.8824853 0.8838400 0.8842153 0.8878740 ## 95M 0.8778565 0.8926077 0.8910342 0.8940695 0.8903988 0.8893500 0.8797799 ## 242M 269M 270M 271M 272M 69M 70M ## 105M 0.8877499 0.8839043 0.8841114 0.8721717 0.8742497 0.8834253 0.8866810 ## 106M 0.8806699 0.8819537 0.8759107 0.8922115 0.8923593 0.8828585 0.8825708 ## 107M 0.8776032 0.8850987 0.8752449 0.8910464 0.8921518 0.8795008 0.8831899 ## 109M 0.8803499 0.8862588 0.8742585 0.8940856 0.8934782 0.8833961 0.8818234 ## 239M 0.8846428 0.8867384 0.8831159 0.8868225 0.8896228 0.8809634 0.8865950 ## 240M 0.8885235 0.8906731 0.8832803 0.8856225 0.8886497 0.8875573 0.8859345 ## 241M 0.8870224 0.8834862 0.8829289 0.8756713 0.8797040 0.8841298 0.8919455 ## 242M 1.0000000 0.8857906 0.8869348 0.8775235 0.8782839 0.8907170 0.8931950 ## 269M 0.8857906 1.0000000 0.8841030 0.8831824 0.8861965 0.8860682 0.8903097 ## 270M 0.8869348 0.8841030 1.0000000 0.8718266 0.8735451 0.8823119 0.8890417 ## 271M 0.8775235 0.8831824 0.8718266 1.0000000 0.8922931 0.8826826 0.8839300 ## 272M 0.8782839 0.8861965 0.8735451 0.8922931 1.0000000 0.8800932 0.8836702 ## 69M 0.8907170 0.8860682 0.8823119 0.8826826 0.8800932 1.0000000 0.8915389 ## 70M 0.8931950 0.8903097 0.8890417 0.8839300 0.8836702 0.8915389 1.0000000 ## 71M 0.8913876 0.8881503 0.8859984 0.8784580 0.8792525 0.8869817 0.8881456 ## 72M 0.8896231 0.8888497 0.8862750 0.8756110 0.8770654 0.8868925 0.8902339 ## 78M 0.8911644 0.8865738 0.8899963 0.8799723 0.8797109 0.8881811 0.8954309 ## 79M 0.8799827 0.8827168 0.8707932 0.8910024 0.8923716 0.8823050 0.8810750 ## 80M 0.8836131 0.8869164 0.8769475 0.8914616 0.8944513 0.8853951 0.8843760 ## 81M 0.8831553 0.8842173 0.8831759 0.8721251 0.8755384 0.8836188 0.8864158 ## 92M 0.8898430 0.8856077 0.8857481 0.8757770 0.8776176 0.8847750 0.8868255 ## 93M 0.8808490 0.8856062 0.8763857 0.8846576 0.8898928 0.8841787 0.8844370 ## 94M 0.8902949 0.8849101 0.8830714 0.8771387 0.8813935 0.8849309 0.8902713 ## 95M 0.8800560 0.8850293 0.8741091 0.8903879 0.8910653 0.8835958 0.8855073 ## 71M 72M 78M 79M 80M 81M 92M ## 105M 0.8879241 0.8888565 0.8855700 0.8731463 0.8750002 0.8816313 0.8826261 ## 106M 0.8790609 0.8755278 0.8820850 0.8921435 0.8944950 0.8728327 0.8766862 ## 107M 0.8795339 0.8757371 0.8779986 0.8916061 0.8911367 0.8769054 0.8780428 ## 109M 0.8795501 0.8795507 0.8836088 0.8961749 0.8947769 0.8760313 0.8793387 ## 239M 0.8831597 0.8824441 0.8845081 0.8884921 0.8939630 0.8769676 0.8825837 ## 240M 0.8865321 0.8840521 0.8879362 0.8901632 0.8916699 0.8810118 0.8816992 ## 241M 0.8838750 0.8863091 0.8887524 0.8758296 0.8781565 0.8801093 0.8860945 ## 242M 0.8913876 0.8896231 0.8911644 0.8799827 0.8836131 0.8831553 0.8898430 ## 269M 0.8881503 0.8888497 0.8865738 0.8827168 0.8869164 0.8842173 0.8856077 ## 270M 0.8859984 0.8862750 0.8899963 0.8707932 0.8769475 0.8831759 0.8857481 ## 271M 0.8784580 0.8756110 0.8799723 0.8910024 0.8914616 0.8721251 0.8757770 ## 272M 0.8792525 0.8770654 0.8797109 0.8923716 0.8944513 0.8755384 0.8776176 ## 69M 0.8869817 0.8868925 0.8881811 0.8823050 0.8853951 0.8836188 0.8847750 ## 70M 0.8881456 0.8902339 0.8954309 0.8810750 0.8843760 0.8864158 0.8868255 ## 71M 1.0000000 0.8886280 0.8880346 0.8796702 0.8829212 0.8861449 0.8864022 ## 72M 0.8886280 1.0000000 0.8935073 0.8729746 0.8811664 0.8858840 0.8856137 ## 78M 0.8880346 0.8935073 1.0000000 0.8794187 0.8835918 0.8849983 0.8878440 ## 79M 0.8796702 0.8729746 0.8794187 1.0000000 0.8909183 0.8734919 0.8768565 ## 80M 0.8829212 0.8811664 0.8835918 0.8909183 1.0000000 0.8776146 0.8815518 ## 81M 0.8861449 0.8858840 0.8849983 0.8734919 0.8776146 1.0000000 0.8818072 ## 92M 0.8864022 0.8856137 0.8878440 0.8768565 0.8815518 0.8818072 1.0000000 ## 93M 0.8812845 0.8759870 0.8841933 0.8905751 0.8917028 0.8775581 0.8774098 ## 94M 0.8846468 0.8900426 0.8906573 0.8783026 0.8834607 0.8816925 0.8878764 ## 95M 0.8817476 0.8779814 0.8822435 0.8919989 0.8902349 0.8747271 0.8782075 ## 93M 94M 95M ## 105M 0.8764875 0.8829896 0.8778565 ## 106M 0.8908421 0.8790891 0.8926077 ## 107M 0.8890570 0.8784781 0.8910342 ## 109M 0.8925880 0.8824853 0.8940695 ## 239M 0.8884510 0.8838400 0.8903988 ## 240M 0.8904487 0.8842153 0.8893500 ## 241M 0.8781733 0.8878740 0.8797799 ## 242M 0.8808490 0.8902949 0.8800560 ## 269M 0.8856062 0.8849101 0.8850293 ## 270M 0.8763857 0.8830714 0.8741091 ## 271M 0.8846576 0.8771387 0.8903879 ## 272M 0.8898928 0.8813935 0.8910653 ## 69M 0.8841787 0.8849309 0.8835958 ## 70M 0.8844370 0.8902713 0.8855073 ## 71M 0.8812845 0.8846468 0.8817476 ## 72M 0.8759870 0.8900426 0.8779814 ## 78M 0.8841933 0.8906573 0.8822435 ## 79M 0.8905751 0.8783026 0.8919989 ## 80M 0.8917028 0.8834607 0.8902349 ## 81M 0.8775581 0.8816925 0.8747271 ## 92M 0.8774098 0.8878764 0.8782075 ## 93M 1.0000000 0.8827654 0.8889977 ## 94M 0.8827654 1.0000000 0.8800892 ## 95M 0.8889977 0.8800892 1.0000000 ``` ``` r dev.off() ``` ``` ## png ## 2 ``` ``` r png("../output/27-methylation-landscape/sample_clustering.png", width = 1000, height = 700) clusterSamples(meth_24, dist = "correlation", method = "ward", plot = TRUE) ``` ``` ## ## Call: ## hclust(d = d, method = HCLUST.METHODS[hclust.method]) ## ## Cluster method : ward.D ## Distance : pearson ## Number of objects: 24 ``` ``` r dev.off() ``` ``` ## png ## 2 ``` ``` r png("../output/27-methylation-landscape/sample_pca.png", width = 800, height = 700) PCASamples(meth_24) dev.off() ``` ``` ## png ## 2 ``` ``` r # PCA scores for inspecting whether samples group by site vs PAH vs artefact pca_obj <- PCASamples(meth_24, obj.return = TRUE) ```

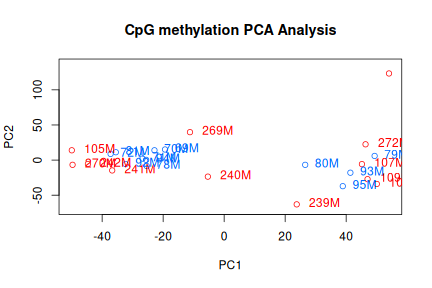

plot of chunk pca

plot of chunk pca

``` r write.csv(as.data.frame(pca_obj$x), "../output/27-methylation-landscape/pca_scores.csv") ``` # 93M outlier evaluation Formal evaluation of 93M against the QC criteria: global %CpG methylation, coverage, and PCA/clustering position. Document the retain/exclude decision with the figures above rather than as an unstated convention. ``` r per_sample |> mutate(is_93M = sample == "93M") |> arrange(global_pct_meth) |> select(sample, site, pah, n_CpG_covered, mean_coverage, global_pct_meth, is_93M) ``` ``` ## Error in select(arrange(mutate(per_sample, is_93M = sample == "93M"), : unused arguments (site, pah, n_CpG_covered, mean_coverage, global_pct_meth, is_93M) ``` # Session info ``` r sessionInfo() ``` ``` ## R version 4.2.3 (2023-03-15) ## Platform: x86_64-pc-linux-gnu (64-bit) ## Running under: Ubuntu 24.04.4 LTS ## ## Matrix products: default ## BLAS: /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3 ## LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so ## ## locale: ## [1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C ## [3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8 ## [5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8 ## [7] LC_PAPER=en_US.UTF-8 LC_NAME=C ## [9] LC_ADDRESS=C LC_TELEPHONE=C ## [11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C ## ## attached base packages: ## [1] stats4 stats graphics grDevices utils datasets methods ## [8] base ## ## other attached packages: ## [1] methylKit_1.24.0 GenomicRanges_1.50.2 GenomeInfoDb_1.34.9 ## [4] IRanges_2.32.0 S4Vectors_0.36.2 BiocGenerics_0.44.0 ## [7] lubridate_1.9.4 forcats_1.0.0 stringr_1.5.1 ## [10] dplyr_1.1.4 purrr_1.1.0 readr_2.1.5 ## [13] tidyr_1.3.1 tibble_3.3.0 ggplot2_4.0.0 ## [16] tidyverse_2.0.0 knitr_1.50 ## ## loaded via a namespace (and not attached): ## [1] MatrixGenerics_1.10.0 Biobase_2.58.0 ## [3] splines_4.2.3 R.utils_2.13.0 ## [5] gtools_3.9.5 S7_0.2.0 ## [7] GenomeInfoDbData_1.2.9 Rsamtools_2.14.0 ## [9] yaml_2.3.10 numDeriv_2016.8-1.1 ## [11] pillar_1.11.0 lattice_0.22-7 ## [13] glue_1.8.0 limma_3.54.2 ## [15] bbmle_1.0.25.1 RColorBrewer_1.1-3 ## [17] XVector_0.38.0 qvalue_2.30.0 ## [19] colorspace_2.1-1 Matrix_1.5-3 ## [21] R.oo_1.27.1 plyr_1.8.9 ## [23] XML_3.99-0.18 pkgconfig_2.0.3 ## [25] emdbook_1.3.14 zlibbioc_1.44.0 ## [27] mvtnorm_1.3-3 scales_1.4.0 ## [29] tzdb_0.5.0 BiocParallel_1.32.6 ## [31] timechange_0.3.0 generics_0.1.4 ## [33] farver_2.1.2 withr_3.0.2 ## [35] SummarizedExperiment_1.28.0 cli_3.6.5 ## [37] magrittr_2.0.4 crayon_1.5.3 ## [39] mclust_6.1.1 evaluate_1.0.4 ## [41] R.methodsS3_1.8.2 MASS_7.3-60 ## [43] textshaping_1.0.3 tools_4.2.3 ## [45] data.table_1.14.10 hms_1.1.3 ## [47] matrixStats_1.5.0 BiocIO_1.8.0 ## [49] lifecycle_1.0.4 DelayedArray_0.24.0 ## [51] Biostrings_2.66.0 compiler_4.2.3 ## [53] systemfonts_1.2.3 fastseg_1.44.0 ## [55] rlang_1.1.6 grid_4.2.3 ## [57] RCurl_1.98-1.17 rjson_0.2.23 ## [59] labeling_0.4.3 bitops_1.0-9 ## [61] restfulr_0.0.16 gtable_0.3.6 ## [63] codetools_0.2-20 reshape2_1.4.4 ## [65] R6_2.6.1 GenomicAlignments_1.34.1 ## [67] rtracklayer_1.58.0 bdsmatrix_1.3-7 ## [69] utf8_1.2.6 ragg_1.4.0 ## [71] KernSmooth_2.23-26 stringi_1.8.7 ## [73] parallel_4.2.3 Rcpp_1.1.0 ## [75] vctrs_0.6.5 tidyselect_1.2.1 ## [77] xfun_0.52 coda_0.19-4.1 ```
